| Material | Stainless Steel Wire |
| Hole Shape | Round |
| Application | Liquid Filtration, Screening, Solid-Liquid Separation, Gas-Liquid Separation, Dry Filtration, Dustproof, Gas Filtration |
| Type | Medium Efficiency |
| Style | Perforated Mesh |
| Materials | Stainless Steel Wire Mesh |
| Model NO. | ZB-PM-01 |
| Thickness | 0.5-8mm |
| Hole Size | 0.8mm-100mm |
| Width | 0.1-1.5m |
| Length | 1m-20m |
| Transport Package | as Customers′ Requirements |
| Specification | SGS, ISO |
| Origin | China |
| HS Code | 7326901900 |
| Production Capacity | 1000pieces/Week |
| Product Details | ||

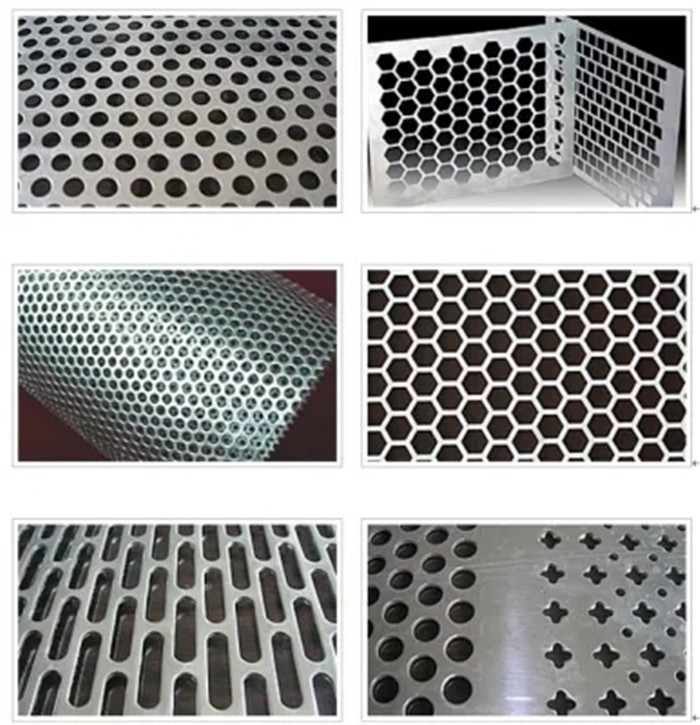

| Product Name | heavy type perforated metal mesh |  |
| Product Type | heavy metal mesh | |
| Surface Treatment | polished,pvc coated, electric/hot dipped galvanized | |
| Hole Shape | round,triangle,square,diamond,other shape | |
| Aperture | 0.045"-3/8" | |
| Thickness | 0.03mm-1.2mm | |
| Width | 0.914m | |
| Feature | Corrosiopn resistance, eco-friendly | |
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.033 In. | 0.84mm | 0.055 | 0.0165-0.0198 IN. | 0.40-0.50mm | 28.00% |
| 0.045 In. | 1.14mm | 0.066 | 0.0165-0.0198 IN. | 0.40-0.50mm | 37.00% |
| 1/16 In. | 1.59mm | 3/32 In. | 0.026-0.053 IN. | 0.66-1.35mm | 41.00% |
| 1/16 In. | 1.59mm | 1/8 In. | 0.046-0.053 IN. | 1.17-1.36mm | 23.00% |
| 3/32 In. | 2.38mm | 9/64 In. | 0.054-0.065 IN. | 1.37-1.65mm | 40.30% |
| 3/32 In. | 2.38mm | 5/32 In. | 0.026-0.079 IN. | 0.66-2.00mm | 33.00% |
| 3/32 In. | 2.38mm | 1/4 In. | 0.033-0.053'' | 0.84-1.35mm | 12.50% |
| 1/8 In. | 3.17mm | 3/16 In. | 0.026-0.129'' | 0.80-2.89mm | 40.00% |
| 1/8 In. | 3.17mm | 7/32 In. | 0.026-0.039'' | 0.66-0.99mm | 29.60% |
| 5/32 In. | 3.97mm | 3/16 IN. | 0.026-0.065'' | 0.66-1.65mm | 63.00% |
| 3/16 In. | 4.76mm | 1/4 IN. | 0.026-0.079'' | 0.66-2.00mm | 50.00% |
| 3/16 In. | 4.76mm | 5/16 IN. | 0.029'', 0.059'' | 0.73mm, 1.50mm | 32.00% |
| 1/4 In. | 6.35mm | 5/16 IN. | 0.026-0.079'' | 0.66-2.00mm | 58.00% |
| 1/4 In. | 6.35mm | 3/8 IN. | 0.012'', 0.026-0.065'' | 0.30mm, 0.66-1.65mm | 40.00% |
| 1/2 In. | 12.70mm | 11/16 IN. | 0.059'', 0.121'' | 1.50mm, 3.00mm; | 48.00% |
