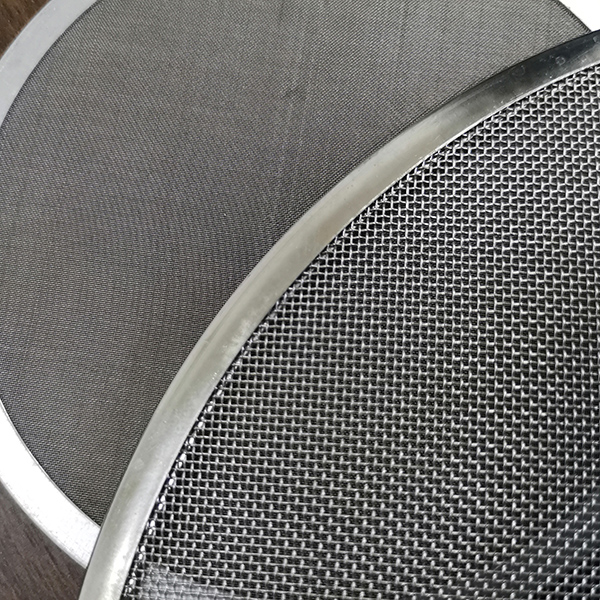

Sintered Metal Filter Disc High Quality Wire Mesh Disks

Material: Stainless Steel
Layers: Single/Bunk
Usage: Liquid Filter, Solid Filter
Type: Filter Disc
Hole Shape: Square
Structure: Combined

Products Details

Sintered Metal Filter Disc High Quality Wire Mesh Disks Filter Disc Product Introduction: Sintered metal filter disc, is an ideal filter element for accurate filtration. It is made from sintered wire mesh through laser-cutting. Sintering is a process which produces fusion bonds at all contact points of the woven wire mesh in the vacuum environment with high temperature. Sintering maintains the uniformity of the original weave and fixes the hole size, shape and micron rating of the mesh. The sintered wire mesh can be monolayer or multi-layered, whichever is full of high strength and rigidity. For various purposes, sintered metal filter discs can be processed into different shapes, like round, toroidal, square, oval or fan-shaped. According to customers' demand, sintered metal filter discs can also be added outer rings. Sintered mesh filter disc is widely used in filtration process in many industries, it works as gas-liquid separation, oil and fuel filtration. Filter Disc Specifications:  Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.  Wire diameters: 0.01 mm - 5 mm.  Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).   Weaving methods: plain weave, twill weave, dutch weave, etc.   Layer: single layer or multiple layers.   Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.  Marginal materials: copper, aluminum, stainless steel, rubber, etc.  Filtration precision: 0.2 µm - 100 µm.
Product Shape rectangle,square,round,oval,circular,rectangular,cap,waist and abnormity
Structure  Single layer,double layer and multi-layers
Process Technique spot welded,edge covering and sintered
Material stainless steel mesh,galvanized wire mesh,copper wire mesh,dutch weave wire mesh,black wire mesh,perforated metal mesh etc.
Edge Material stainless steel sheet,copper sheet,galvanized sheet,aluminum sheet,rubber ect
Out diameter usually 5-600mesh
Application Wire mesh filter disc is mainly used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Wire mesh filter disc also can be used as air filter for car.
Filter Disc Features: 1.Good filterability to the liquid. 2.Can be repeatedly used after washing. 3. Withstands high pressure. 4. Made of stainless steel 304 or 316, resistant to corrosion and high temperatures. 5. High filtration efficiency and high filtration precision. Filter Disc Applications: 1.Solid gas separation      Muffler,  silencer        Air purification 2.Filtering oil                     Dedusting , Isolation dust , dustproof 3.Gas-oil dissociation       Gas liquid separation   4.Moistureproof                Heat insulation ,  5.Uniform gas,well-distributed, diffuse gas or oil or heat  6.Breathable protection       Pharmaceutical ,  medicine  7. Chemical                          Chemical fiber 8.Filtration for high temperature environment 9.High pressure reverse wash filtering 10.Acid and alkali corrosion environment filtering
Material Stainless Steel
Layers Single/Bunk
Usage Liquid Filter, Solid Filter
Type Filter Disc
Hole Shape Square
Structure Combined
Transport Package Carton/Customized
Specification Customized
Origin Hebei, China
HS Code 842131000
Production Capacity 2000pieces/Day
